Name: UL Teflon Wire Insulated
Brand: Jiangsu Silver& Tin Thread Hi-temperature Wire and Cables Co., Ltd.

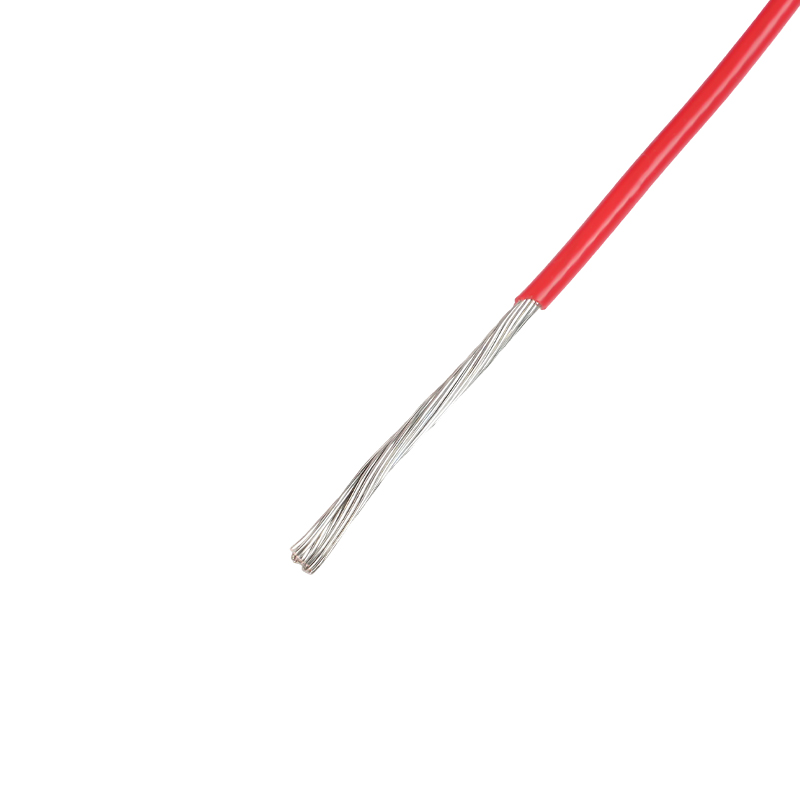

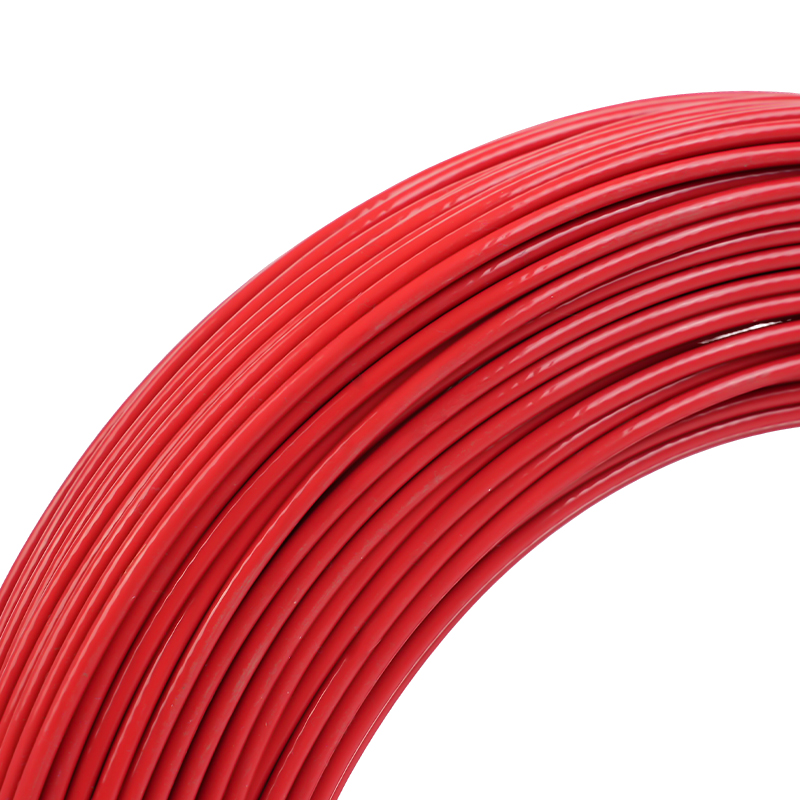

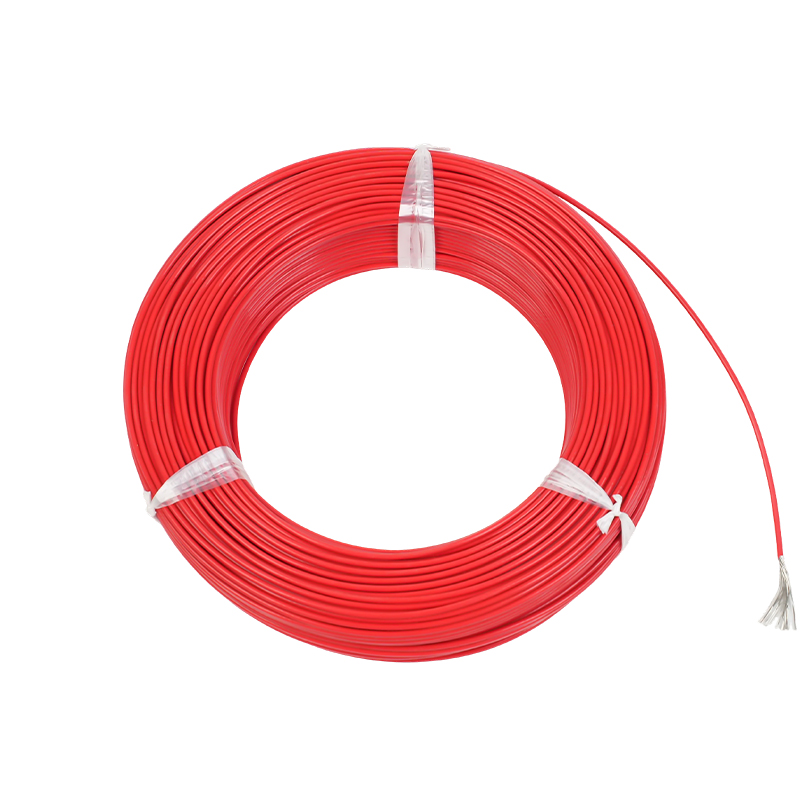

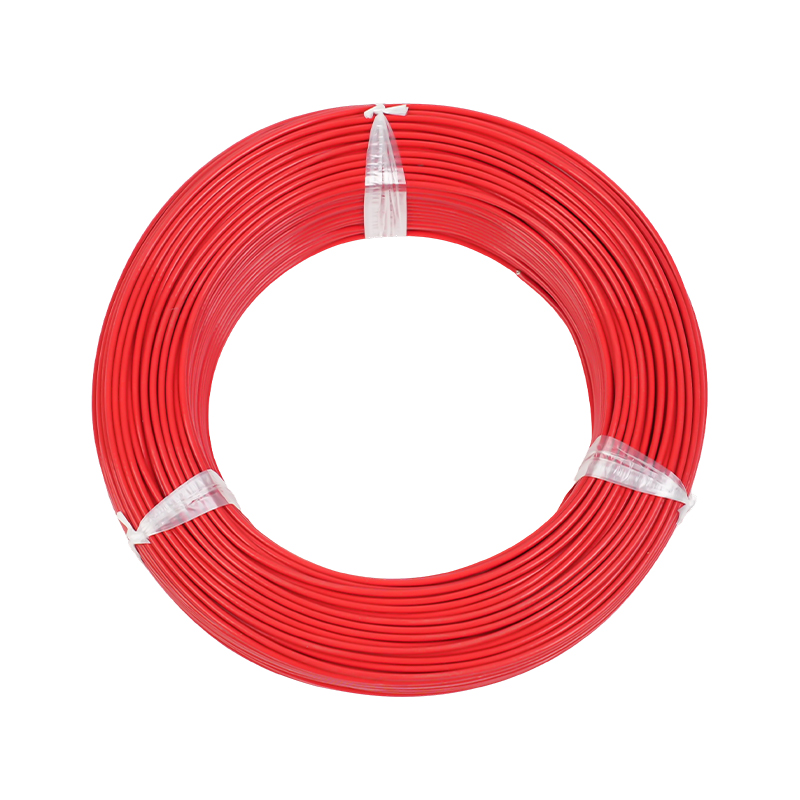

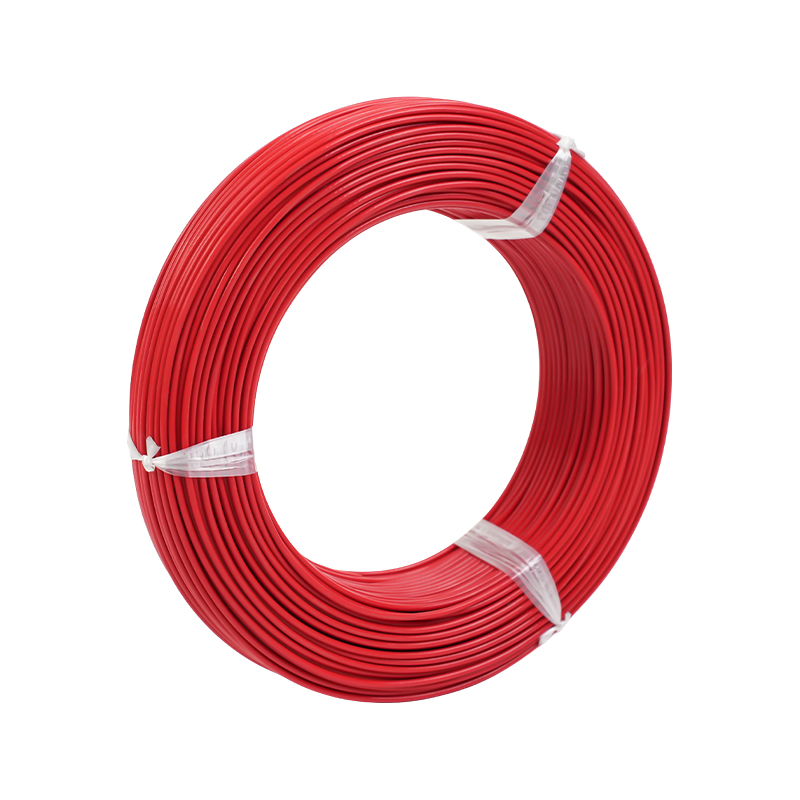

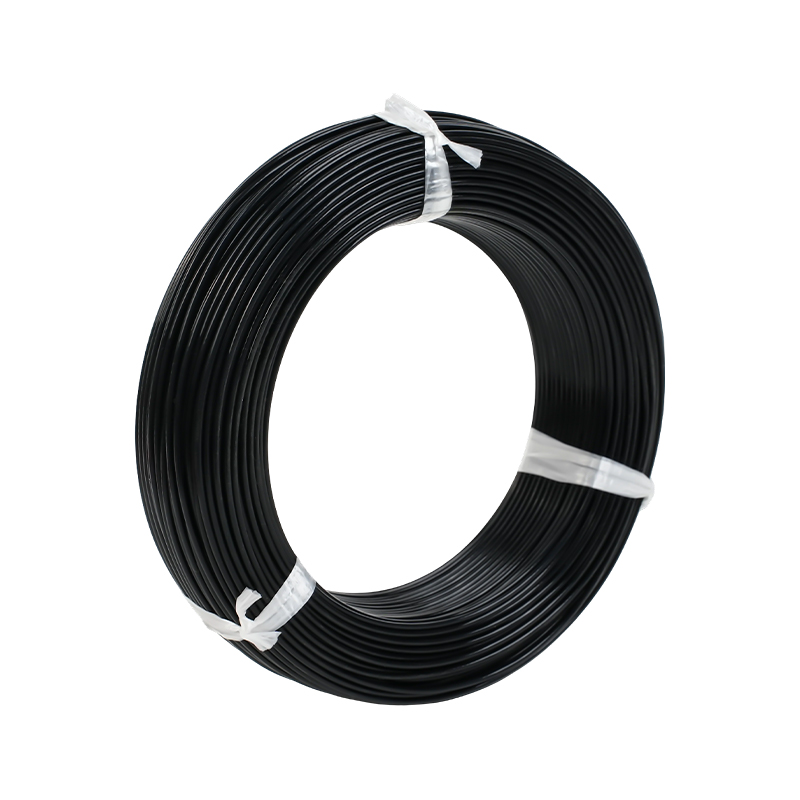

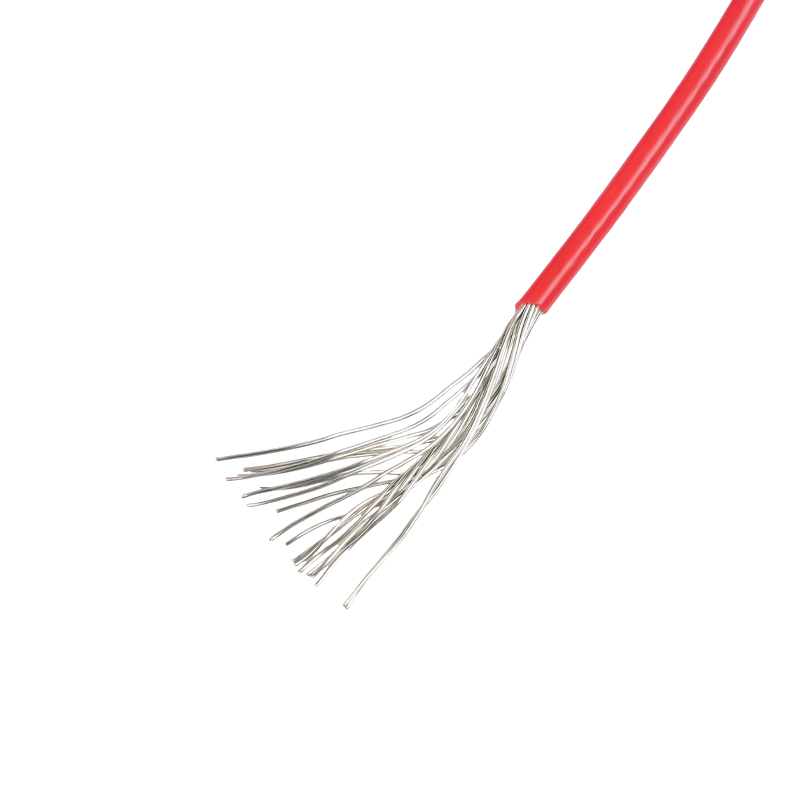

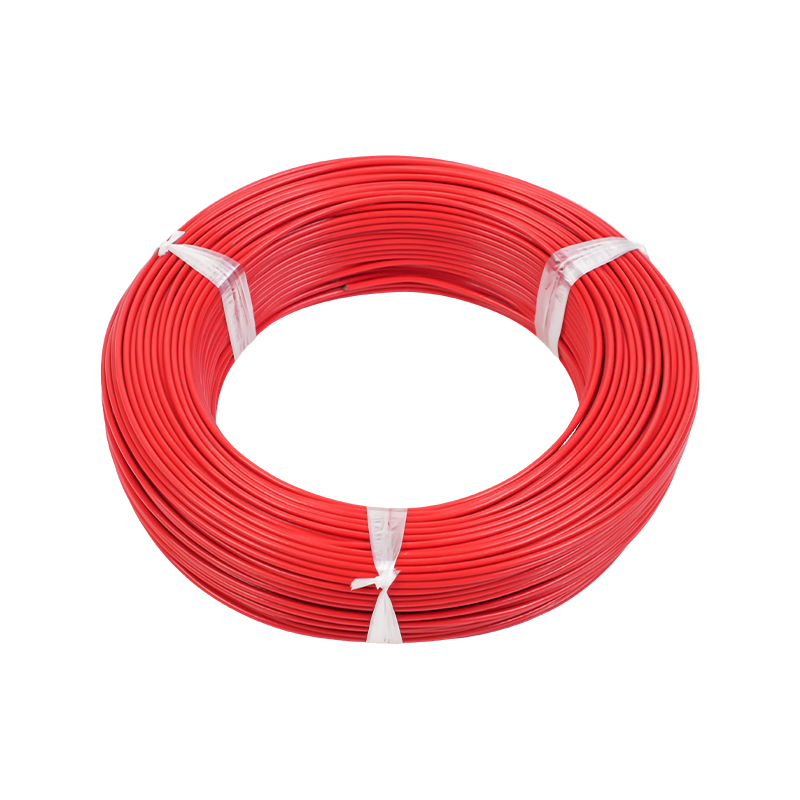

UL Teflon Wire Insulated

Key Features et Commoda
Corporalia Substantia: Firma textura, non tenax, facilis ad figuram, et facilis ad habenas vel incisas
Durabilitas: Optima resistentia caliditatis, flammae, humoris, formae, abrasionis, acida/alkalis et corrosionis.
Electrical euismod: Features summus qualitas aeris conductores tincta cum vena-portandi capacitate alta. Virtus stabilis tradenda et longa servitia praestat vitae

Key Application Areas
Hae rudentes Teflon UL certificati late usi sunt in ambitibus exigendis;
Adjumenta domus: adjumenta varia electrica calefaciendi.
Accensus adfixa: Praecipue frigidae lucis adfixae fons.
Partes industriales: motores parvi, orbes electromagnetici.
Subtilitas sentiendi: Temperature sensoriis.
Transportatio et electronica: autocinetum internum wiring, nexus interni pro electronicis machinis, etc.

Technical Specifications

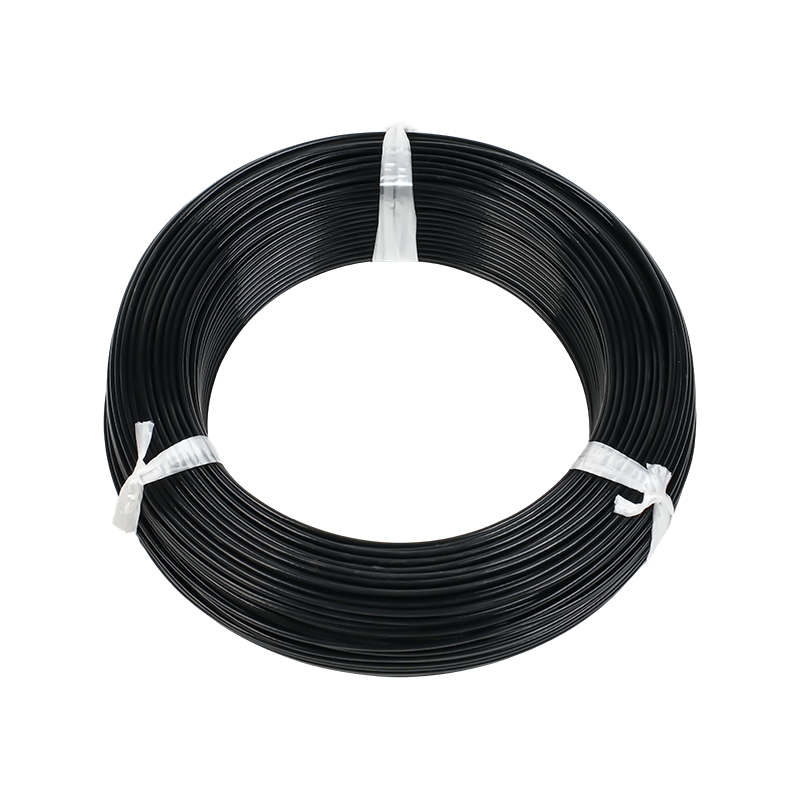

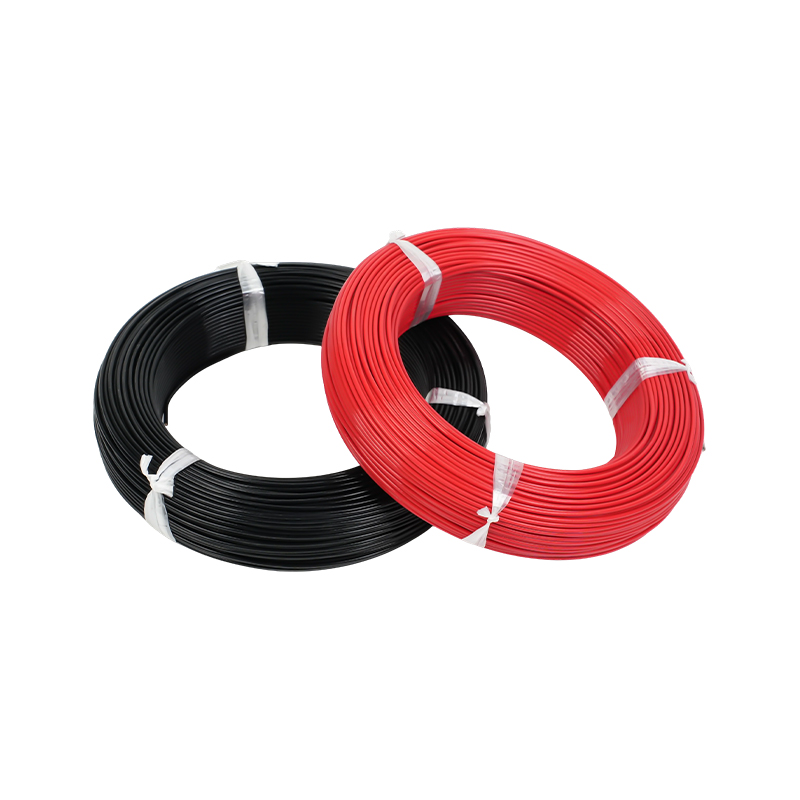

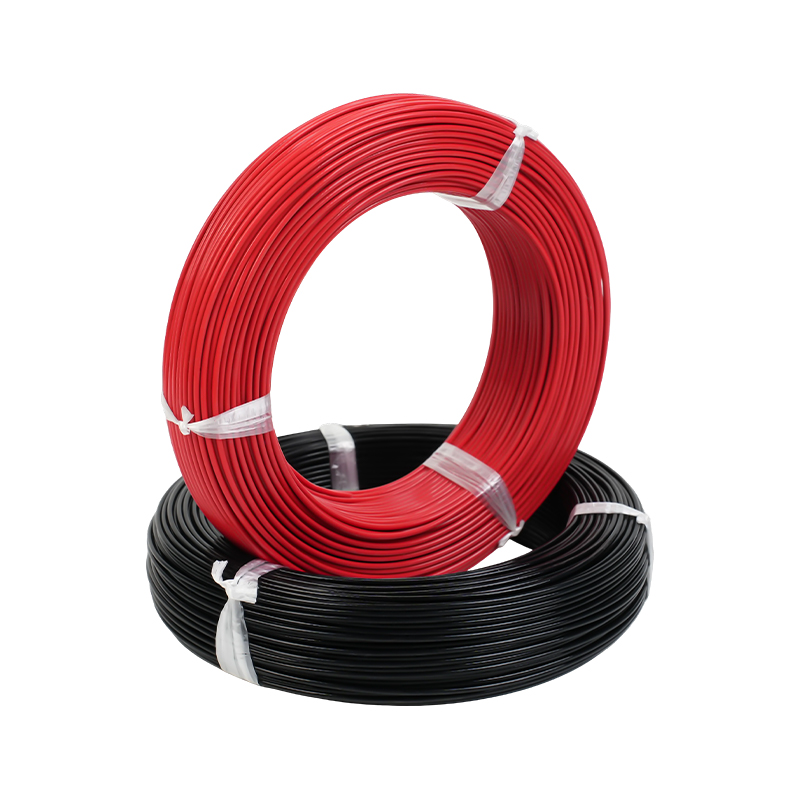

Color optiones: In amplis coloribus, inter album, caeruleum, rubrum, nigrum, brunneum, flavum, viridis, pellucidum, flavo-virides.
Conductor structurae: Tegit varias fauces filum ab 30 AWG ad 10 AWG ut obviam diversis facultatibus currenti-portandi requisitis.
Certification: Societas auctoritativa UL certificationis in 2013 consecuta est, et fructus eius cum signis pertinentibus obtemperare.

Nunc deme

Typus / Standard	AWG Gauge	Conductor Construction (No. x Φ mm)	Conductor Diameter (mm)	Nulla Wall Crassitudo (mm)	Perfecti exterioris diametri (mm)	Maximilianus. Conductor DC Resistentia @ 20°C (Ω/km)	Stipare (m/coil)
UL1330/1331	10	37x0.43	3.01	0.51	4.03	3.546	305
	12	19x0.49	2.45	0.51	3.47	5.64	305
	14	19x0.37	1.85	0.51	2.87	8.96	305
	16	19x0.30	1.5	0.51	2.52	14.6	305
	17	19x0.26	1.3	0.51	2.32	18.3	305
	18	19x0.23	1.15	0.51	2.17	23.2	305
	20	19x0.18	0.9	0.51	1.92	36.7	305
	20	1x0.80	0.8	0.51	1.82	35.2	305
	22	19x0.16	0.8	0.51	1.82	59.4	610
	22	1x0.65	0.65	0.51	1.67	56.4	610
	24	7x0.20	0.6	0.51	1.62	94.2	610
	24	1x0.50	0.5	0.51	1.52	89.3	610
	26	7x0.16	0.48	0.51	1.5	150	610
	26	1x0.40	0.4	0.51	1.42	143	610
	28	7x0.12	0.36	0.51	1.38	239	610
	28	1x0.32	0.32	0.51	1.34	227	610
	30	7x0.10	0.3	0.51	1.32	381	610
	30	1x0.254	0.254	0.51	1.274	361	610
UL1332/1333	10	37x0.43	3.01	0.33	3.67	3.546	305
	12	19x0.49	2.45	0.33	3.11	5.64	305
	14	19x0.37	1.85	0.33	2.51	8.96	305
	16	19x0.30	1.5	0.33	2.16	14.6	305
	17	19x0.26	1.3	0.33	1.96	18.3	305
	18	19x0.23	1.15	0.33	1.81	23.2	305
	20	19x0.18	0.9	0.33	1.56	36.7	305
	20	1x0.80	0.8	0.33	1.46	35.2	305
	22	19x0.16	0.8	0.33	1.46	59.4	610
	22	1x0.65	0.65	0.33	1.31	56.4	610
	24	7x0.20	0.6	0.33	1.26	94.2	610
	24	1x0.50	0.5	0.33	1.16	89.3	610
	26	7x0.16	0.48	0.33	1.14	150	610
	26	1x0.40	0.4	0.33	1.06	143	610
	28	7x0.12	0.36	0.33	1.02	239	610
	28	1x0.32	0.32	0.33	0.98	227	610
	30	7x0.10	0.3	0.33	0.96	381	610
	30	1x0.254	0.254	0.33	0.914	361	610
UL1577	10	37x0.43	3.01	0.33	3.67	3.546	305
	12	19x0.49	2.45	0.33	3.11	5.64	305
	14	19x0.37	1.85	0.33	2.51	8.96	305
	16	19x0.30	1.5	0.33	2.16	14.6	305
	17	19x0.26	1.3	0.33	1.96	18.3	305
	18	19x0.23	1.15	0.33	1.81	23.2	305
	20	19x0.18	0.9	0.33	1.56	36.7	305
	20	1x0.80	0.8	0.33	1.46	35.2	305
	22	19x0.16	0.8	0.33	1.46	59.4	610
	22	1x0.65	0.65	0.33	1.31	56.4	610
	24	7x0.20	0.6	0.33	1.26	94.2	610
	24	1x0.50	0.5	0.33	1.16	89.3	610
	26	7x0.16	0.48	0.33	1.14	150	610
	26	1x0.40	0.4	0.33	1.06	143	610
	28	7x0.12	0.36	0.33	1.02	239	610
	28	1x0.32	0.32	0.33	0.98	227	610
	30	7x0.10	0.3	0.33	0.96	381	610
	30	1x0.254	0.254	0.33	0.914	361	610
UL1591 / 1592	16	19x0.30	1.5	0.41	2.32	14.6	305
	17	19x0.26	1.3	0.41	2.12	18.3	305
	18	19x0.23	1.15	0.41	1.97	23.2	305
	20	19x0.18	0.9	0.41	1.72	36.7	305
	20	1x0.80	0.8	0.41	1.62	35.2	305
	22	19x0.16	0.8	0.41	1.62	59.4	610
	22	1x0.65	0.65	0.41	1.47	56.4	610
	24	7x0.20	0.6	0.41	1.42	94.2	610
	24	1x0.50	0.5	0.41	1.32	89.3	610
	26	7x0.16	0.48	0.41	1.3	150	610
	26	1x0.40	0.4	0.41	1.22	143	610
	28	7x0.12	0.36	0.41	1.18	239	610
	28	1x0.32	0.32	0.41	1.14	227	610
	30	7x0.10	0.3	0.41	1.12	381	610
	30	1x0.254	0.254	0.41	1.074	361	610
	32	7x0.08	0.24	0.41	1.06	664.8	610
	32	1x0.20	0.2	0.41	1.02	588.3	610
UL1723	16	19x0.30	1.5	0.26	2.02	14.6	305
	17	19x0.26	1.3	0.26	1.82	18.3	305
	18	19x0.23	1.15	0.26	1.67	23.2	305
	20	19x0.18	0.9	0.26	1.42	36.7	305
	20	1x0.80	0.8	0.26	1.32	35.2	305
	22	19x0.16	0.8	0.26	1.32	59.4	610
	22	1x0.65	0.65	0.26	1.17	56.4	610
	24	7x0.20	0.6	0.26	1.12	94.2	610
	24	1x0.50	0.5	0.26	1.02	89.3	610
	26	7x0.16	0.48	0.26	1	150	610
	26	1x0.40	0.4	0.26	0.92	143	610
	28	7x0.12	0.36	0.26	0.88	239	610
	28	1x0.32	0.32	0.26	0.84	227	610
	30	7x0.10	0.3	0.26	0.82	381	610
	30	1x0.254	0.254	0.26	0.774	361	610
	32	7x0.08	0.24	0.26	0.76	664.8	610
	32	1x0.20	0.2	0.26	0.72	588.3	610
UL1901	10	37x0.43	3.01	0.36	3.73	3.546	305
	12	19x0.49	2.45	0.36	3.17	5.64	305
	14	19x0.37	1.85	0.36	2.57	8.96	305
	16	19x0.30	1.5	0.36	2.22	14.6	305
	17	19x0.26	1.3	0.36	2.02	18.3	305
	18	19x0.23	1.15	0.36	1.87	23.2	305
	20	19x0.18	0.9	0.36	1.62	37.7	305
		1x0.80	0.8	0.36	1.52	35.2	305
	22	19x0.16	0.8	0.36	1.52	59.4	610
		1x0.65	0.65	0.36	1.37	56.4	610
	24	7x0.20	0.6	0.36	1.32	94.2	610
		1x0.50	0.5	0.36	1.22	89.3	610
	26	7x0.16	0.48	0.36	1.2	150	610
		1x0.40	0.4	0.36	1.12	143	610
	28	7x0.12	0.36	0.36	1.08	239	610
		1x0.32	0.32	0.36	1.04	227	610
	30	7x0.10	0.3	0.36	1.02	381	610
		1x0.254	0.254	0.36	0.974	361	610
