German Standard Automotive Cable--FLY-PVC (Thig Wall)

Model

Magnitudo mm²

Cores

Conductor

Insulation

Range complevit cable

Maximilianus. DC Resistentia ad XX°C

Conductor Structure

Min. Insulation Crassitudo

Min.

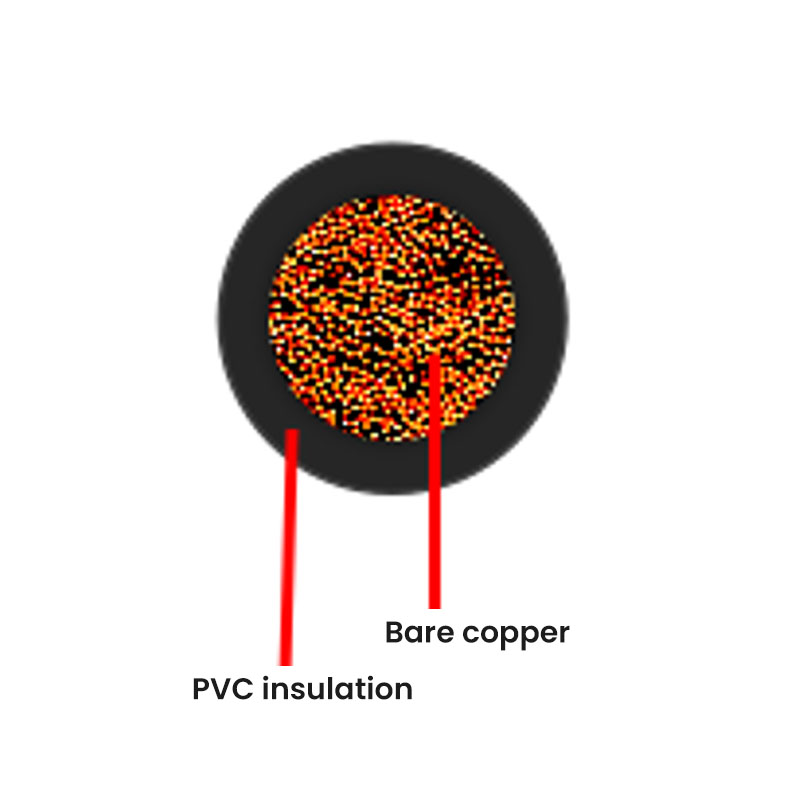

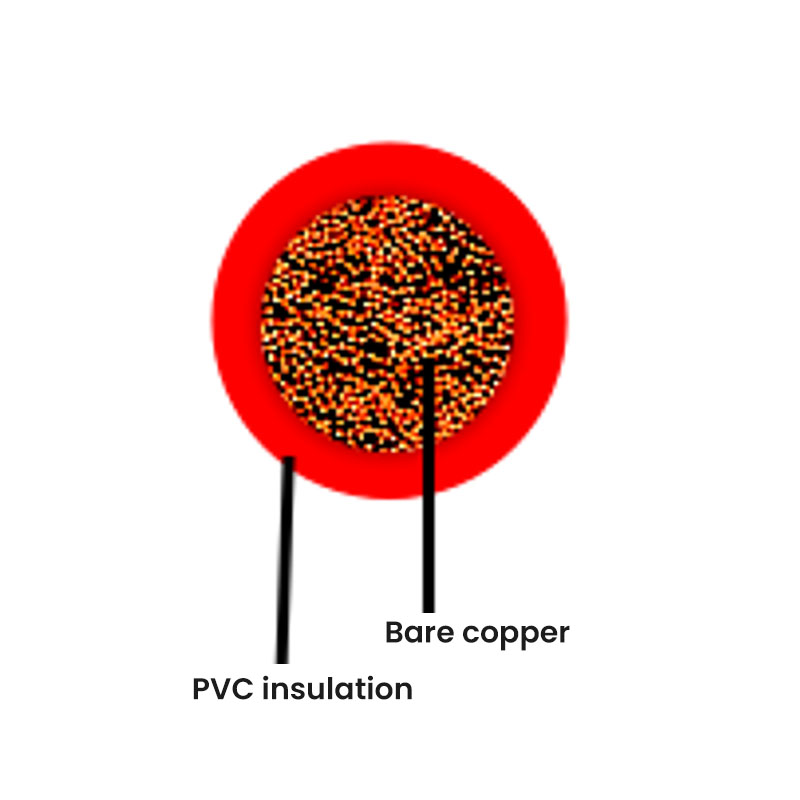

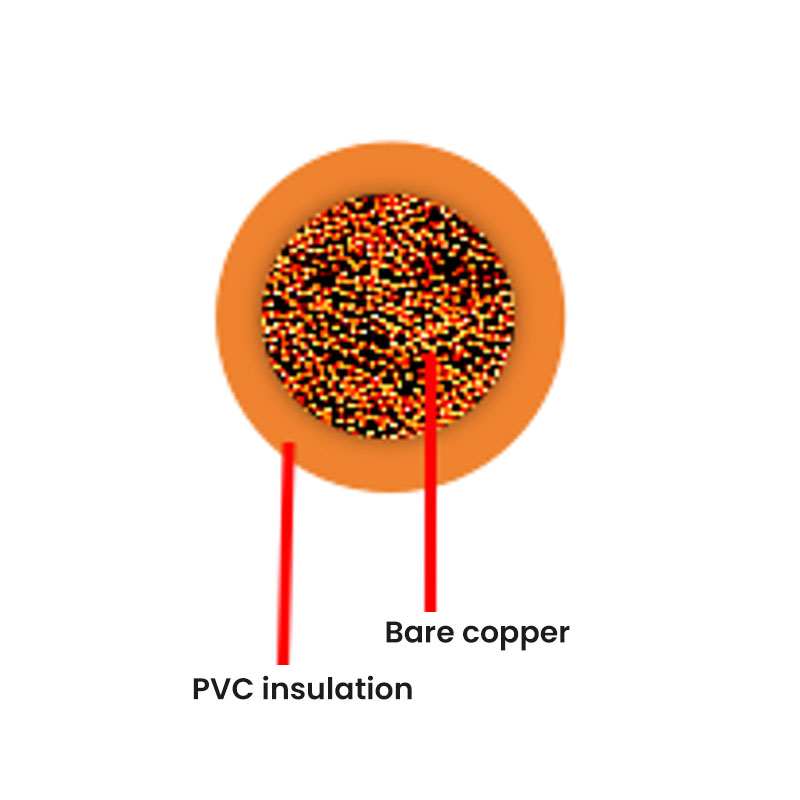

Nuda Copper

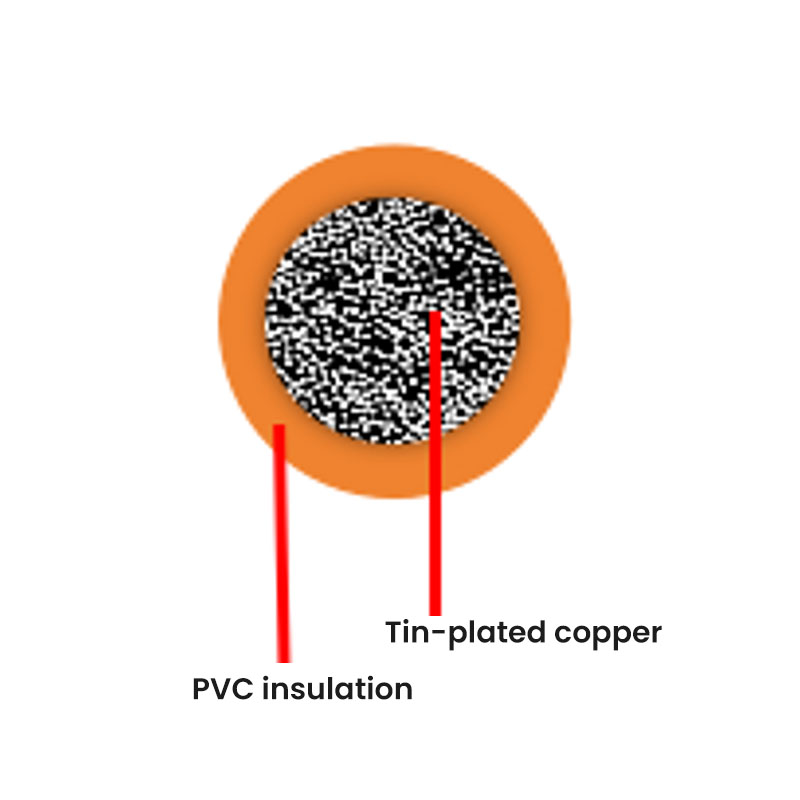

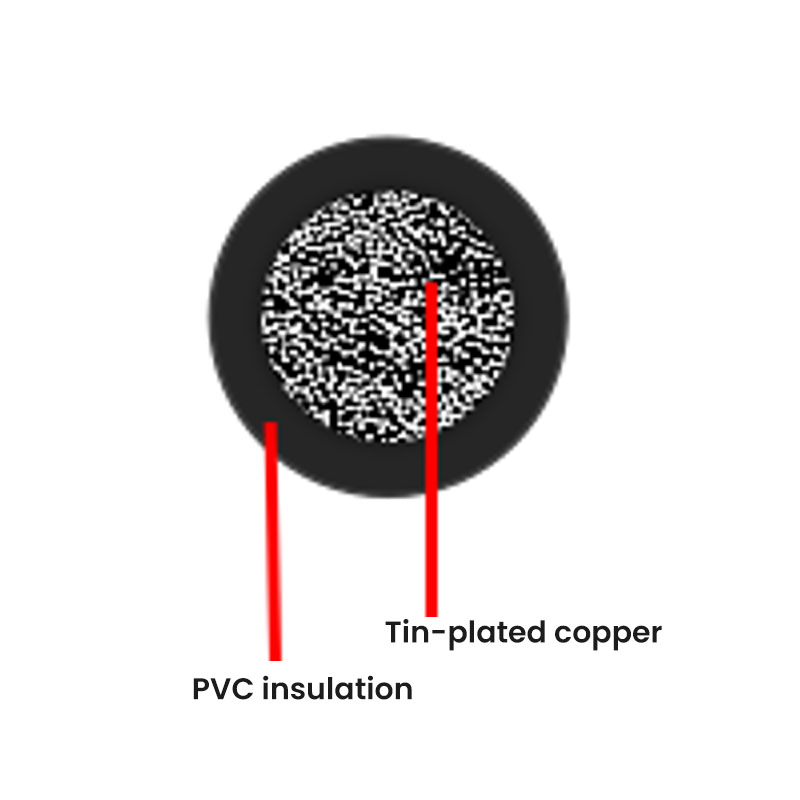

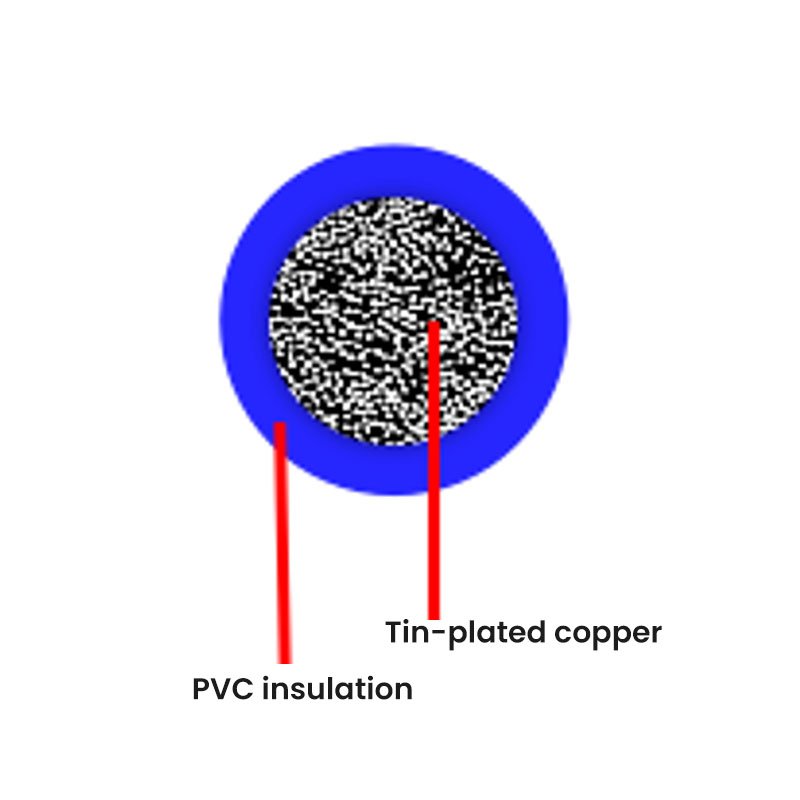

Tinted Cuprum

Nickel-patella Cuprum

mm

mm

mm

Ω/km

MUSCA B

0.5

1

16/0.20

0.48

2.00

37.1

38.2

38.6

MUSCA B

0.75

1

24/0.20

0.48

2.20

24.7

25.4

25.7

MUSCA B

1.0

1

32/0.20

0.48

2.40

18.5

19.1

19.3

MUSCA B

1.25

1

16/0.30

0.48

2.40

14.9

15.9

16.0

MUSCA B

1.5

1

30/0.25

0.48

2.70

12.7

13.0

13.2

MUSCA B

2

1

28/0.30

0.48

3.00

9.42

9.69

9.82

MUSCA B

2.5

1

50/0.25

0.56

3.30

7.60

7.82

7.92

MUSCA B

3

1

44/0.30

0.56

3.80

6.15

6.39

6.41

MUSCA B

4

1

56/0.30

0.64

4.00

4.71

4.85

4.91

MUSCA B

5

1

70/0.30

0.64

4.50

3.94

4.02

4.11

MUSCA B

6

1

84/0.30

0.64

4.60

3.14

3.23

3.27

MUSCA B

8

1

112/0.30

0.64

5.00

2.38

2.52

2.60

MUSCA B

10

1

84/0.39

0.80

5.90

1.82

1.85

1.90

MUSCA B

12

1

98/0.39

0.80

4.60

1.52

1.60

1.66

MUSCA B

16

1

133/0.39

0.80

7.70

1.16

1.18

1.21

MUSCA B

20

1

168/0.39

0.88

8.10

0.955

0.999

1.03

MUSCA B

25

1

209/0.39

1.04

9.40

0.743

0.757

0.774

MUSCA B

30

1

252/0.39

1.04

9.70

0.647

0.684

0.706

MUSCA B

35

1

293/0.39

1.04

9.60

0.527

0.538

0.549
